Audi A3 8V 1.2 TFSI Major Service Kit – VW 504 00

Audi A3 8V 1.2 TFSI Major Service Kit – VW 504 00

For the CJZA/CYVB 1.2 TFSI engine branch, this package uses the EA211 spin-on oil filter and separate-washer metal drain kit. The major kit follows the listed 04E129620 air filter and complete four-plug set. The major package adds the listed engine air filter, cabin filter and spark plugs to the oil-service parts.

Included in the kit

• 5 litres of Motul 8100 X-clean+ 5W-30, supplied as one 5L bottle (MOTUL-106377), approved VW 504 00 / 507 00.
• 1 × Genuine VAG spin-on oil filter 04E115561T.
• 1 × Genuine VAG metal sump drain plug N90288901 and 1 × sealing washer N0138157.
• 1 × Genuine VAG engine air filter 04E129620.
• 1 × Genuine VAG cabin/pollen filter 5Q0819669.
• 1 complete set of 4 Genuine VAG spark plugs, reference 04E905601B.

Vehicle fitment

Audi A3 8V 1.2 TFSI with engine codes CJZA, CYVB, compatible original metal sump requiring N90288901/N0138157 and standard factory airbox requiring air filter 04E129620. This kit is only for a vehicle specification permitting VW 504 00 approved 5W-30 oil. Engine code alone does not establish the oil requirement. Check the vehicle handbook and current Audi specification before ordering.

Excluded applications: VW 508 00 / 509 00 required vehicles, A3 8P/8Y, different engine codes, e-tron/g-tron, diesel, different drain hardware, modified sumps/intakes and alternative climate-specification air filters.

Oil and service scope

The 5L package is the quantity supplied, including reserve where applicable, not a filling instruction. Fill gradually and check the final oil level using Audi's current vehicle-specific procedure. This is a parts package; labour, inspections, resets, brake fluid, coolant, belts, fuel-system filters, DSG/S tronic, Haldex and differential servicing are separate. Follow the manufacturer's maintenance schedule. Modified engines may require different tuner-specified spark plugs.

Provide your registration or 17-character VIN for a check of the engine code, oil approval, fitted sump and airbox before dispatch. Availability follows the components, including any legitimate supplier backorder policy; confirm dispatch timing before booking labour.

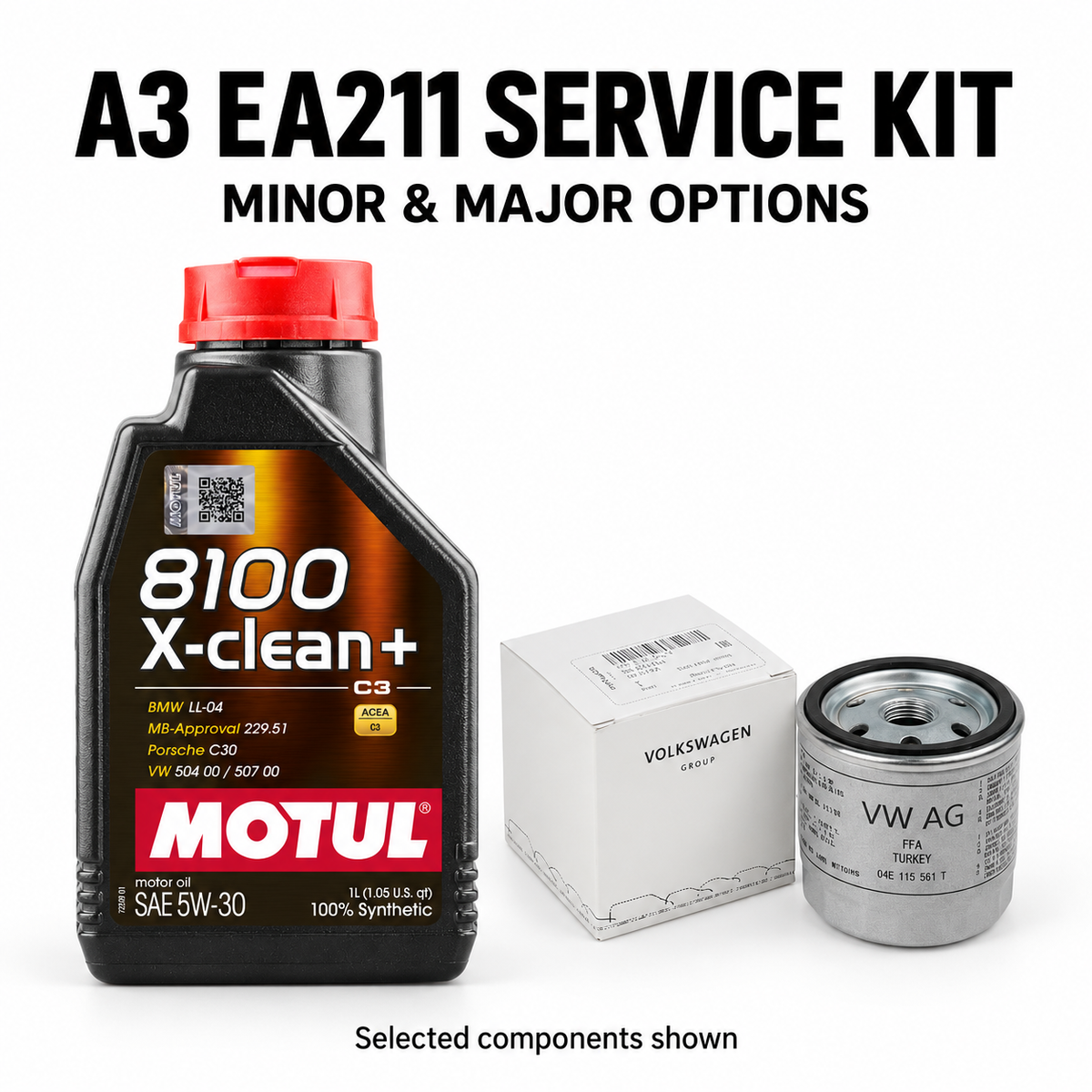

Image: Composed from actual product photographs and shows selected oil/filter components only. The representative oil photograph shows a 1L bottle; this kit supplies one 5L bottle. Complete quantities and contents are listed above.

Questions before ordering

How do I confirm this kit fits my car?

Match CJZA or CYVB, the compatible original metal sump and a handbook specification permitting VW 504 00 approved 5W-30. Other A3 engine families and VW 508 00 required variants are excluded. Supply your registration or full 17-character VIN for the compatibility check.

What is the difference between the minor and major kit?

This major package includes the listed engine air filter, cabin filter and spark plugs. Labour, inspections and the separate fluid or transmission services are outside the parts package.

Should I use all the supplied oil?

The 5L package is the supplied quantity, including reserve where applicable, not a refill instruction. Use the current vehicle-specific filling and level-check procedure, and match the stated oil approval and viscosity.
