Description

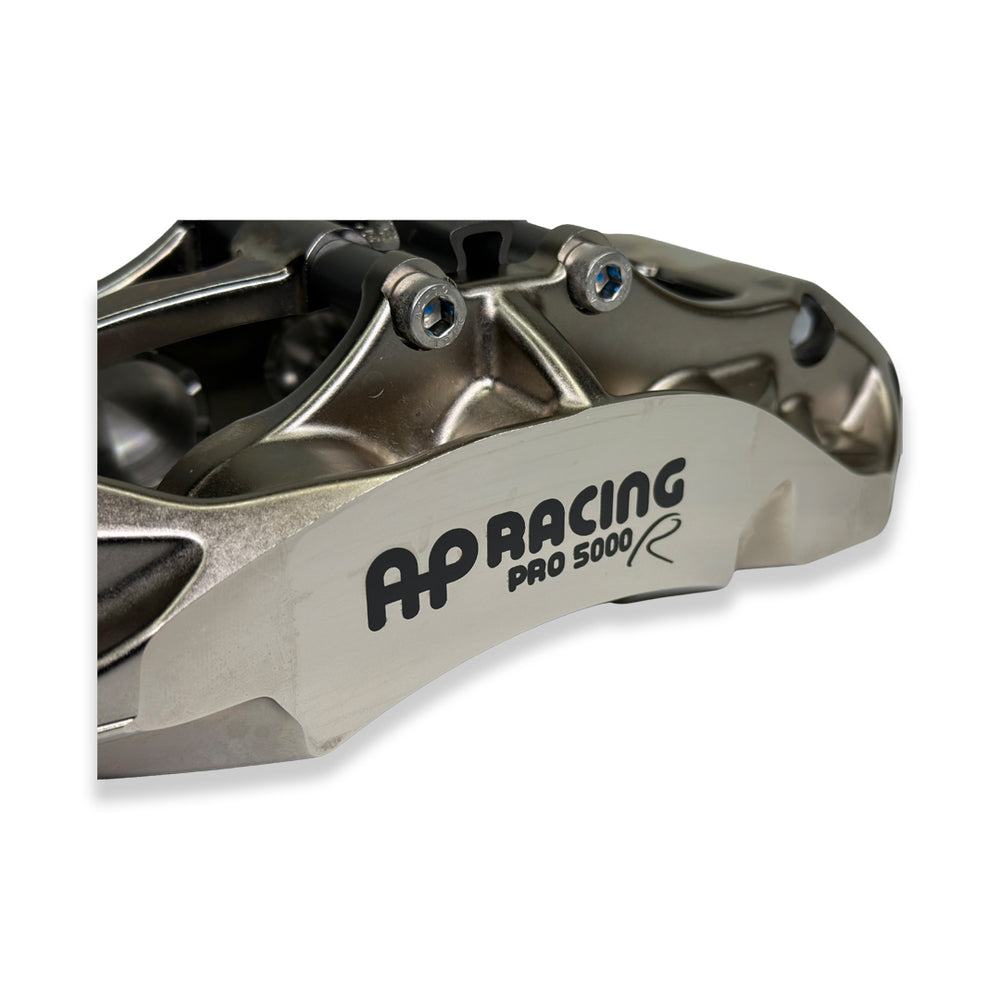

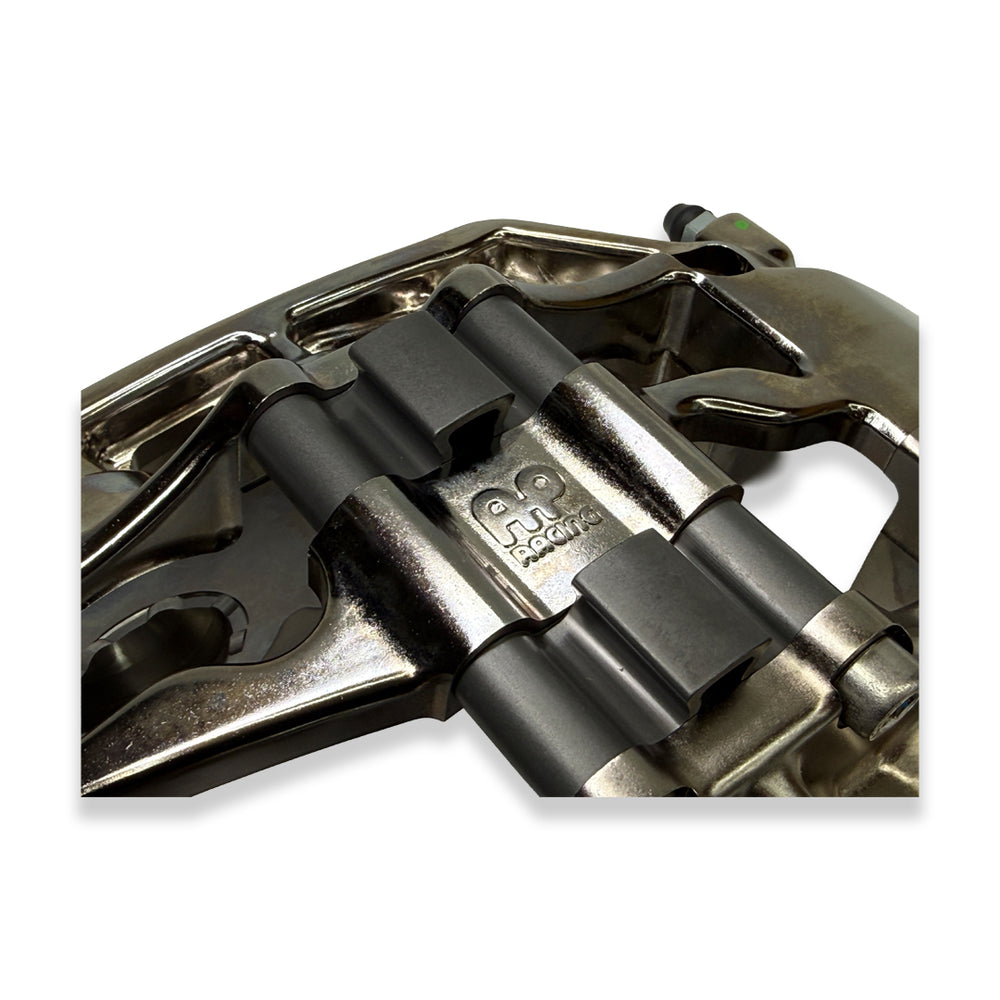

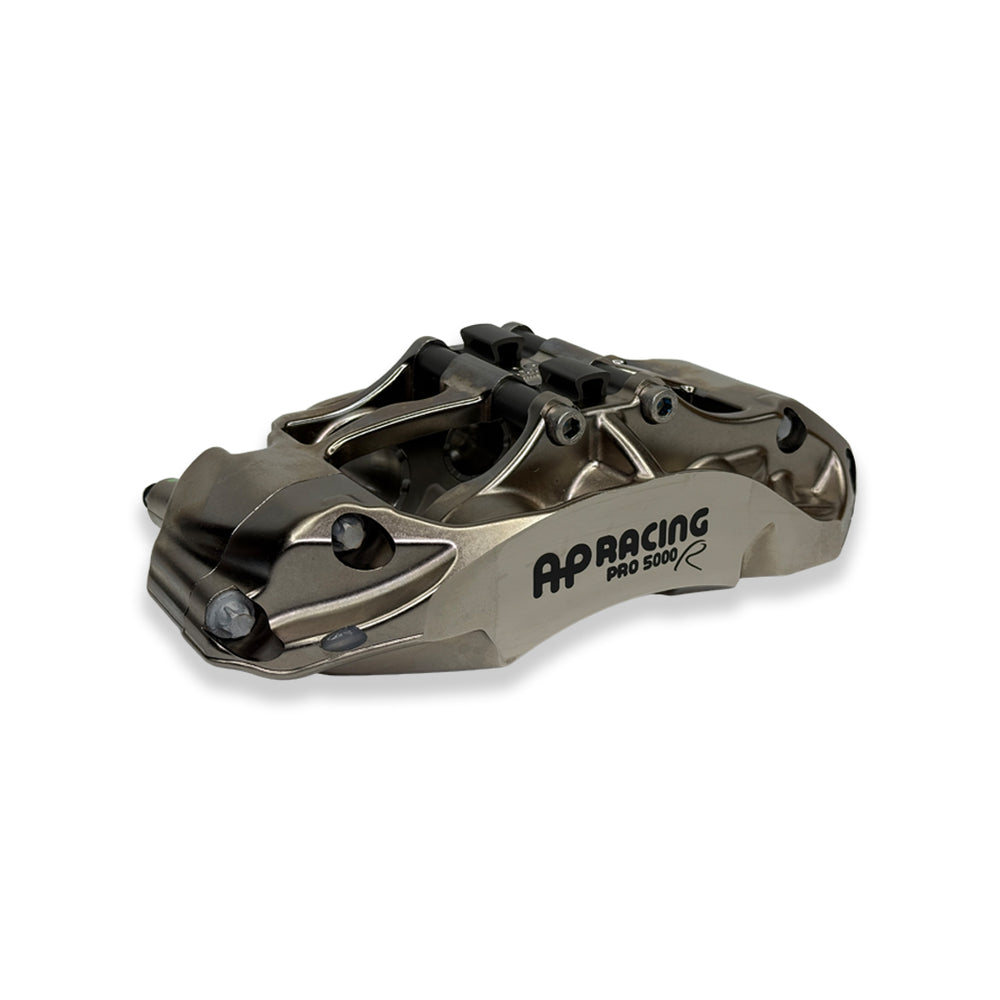

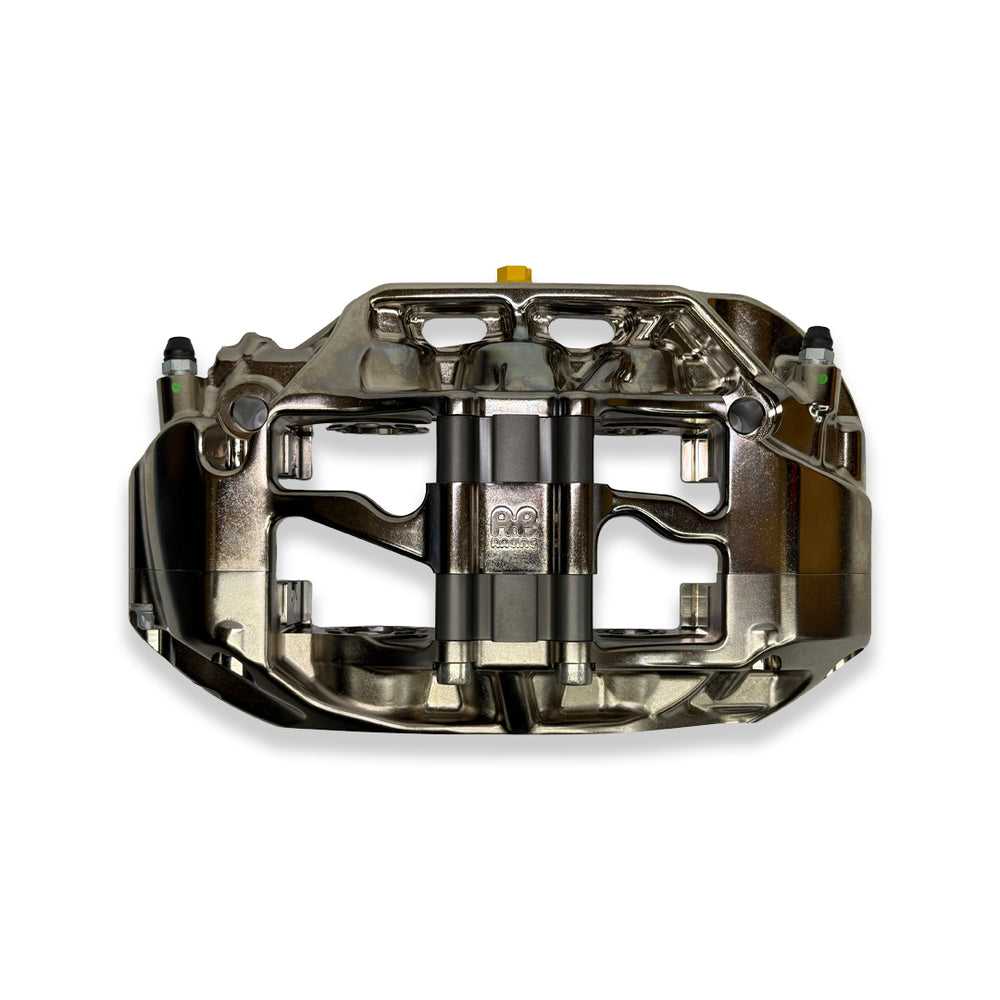

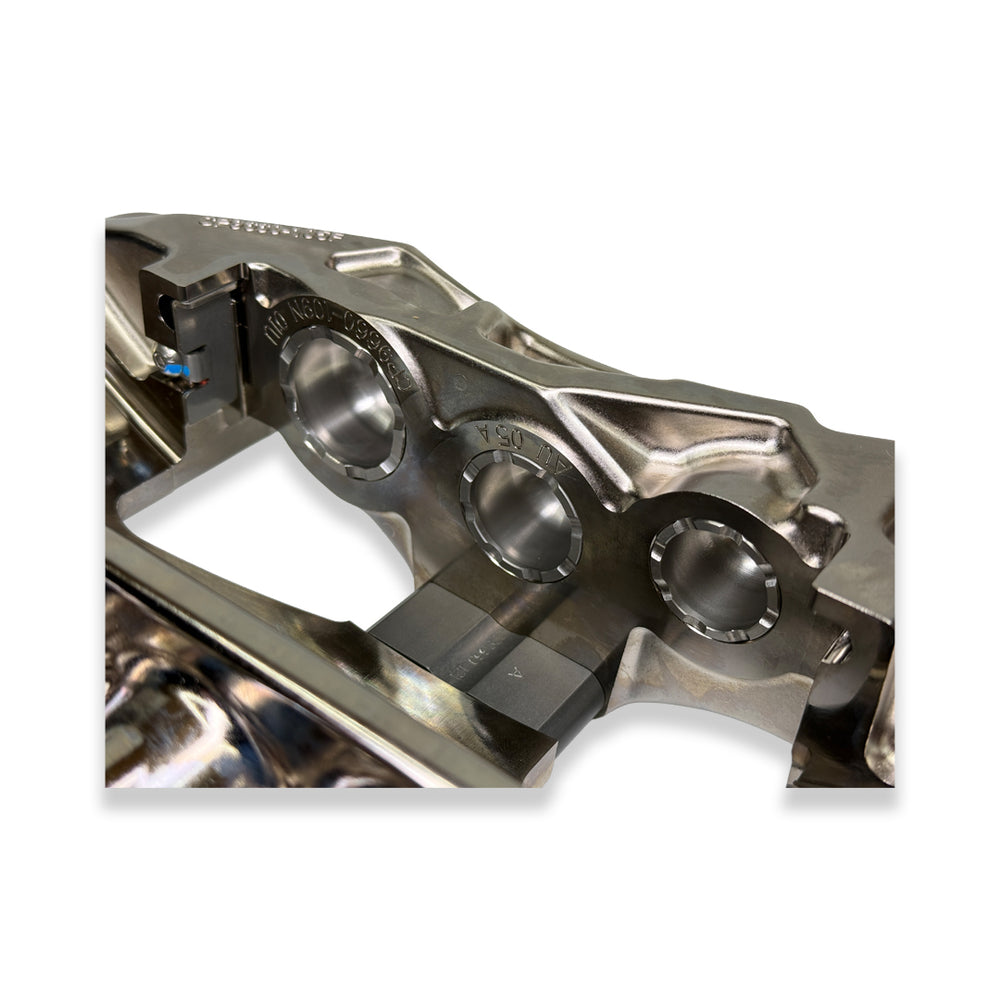

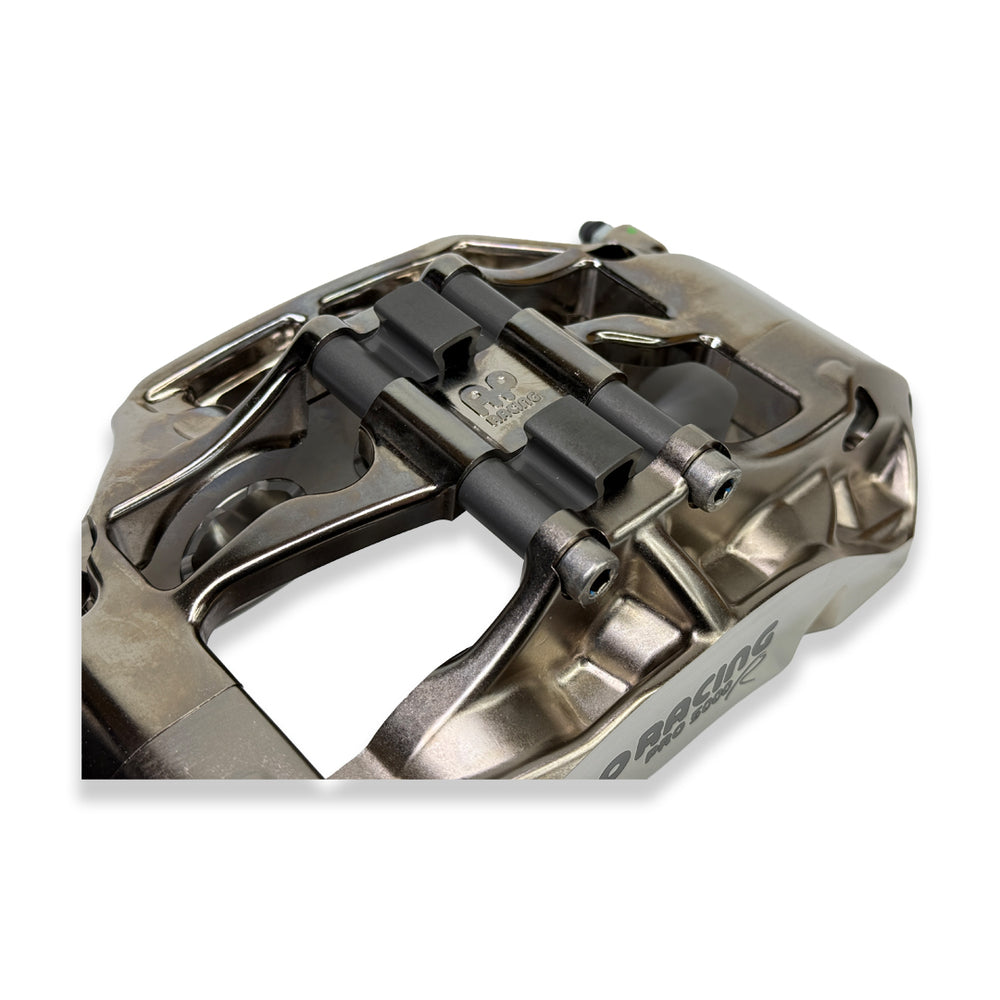

AP Racing Pro5000R CP9660-2S4L/3S4L Pair of Calipers Nickel Finish 6 Piston
Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Available with either Anodised or Nickel plated surface treatments.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø380.0mm Max or 356.0mm Min x 36.0mm Max or 32.0mm Min thick discs.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Part Numbers:
Electroless Nickel Plated
- Right Hand Caliper = CP9660-2S4LN
- Left Hand Caliper = CP9660-3S4LN
| Brake Pad Information | CP3905D54 - Pad Area = 77.4cm² - Pad Depth = 54.0mm - Thickness = 18.0mm |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | Ø27.0 x 2 Ø31.8 x 2 Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Disc Diameter - mm | Max = 380.0mm Min = Ø356.0 |
| Disc Thickness - mm | Max = 36.0 Min = 32.0 |
| Weight - No Pads = Kg | 2.78 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 180.0 |
| Mounting Offset - mm | 42.0 |
| Mounting Hole Ø - mm | 12.15 Nominal |
| PL Dimension - mm | 63.5 |
| Bleedscrew Tightening Torque - Nm | 17 |
AP Racing CP9660 Pro5000R 6-piston calipers
Compare these calipers with the wider AP Racing motorsport brake range. CP9660 uses the CP3905D54 pad shape and is designed around 356-380mm discs within the dimensional limits above.
Important: this listing is for a pair of motorsport calipers, not a vehicle-specific bolt-on brake kit. Vehicle installation requires the correct discs, bells, brackets, hoses, master-cylinder balance and wheel clearance for the application. Do not assume direct fitment from vehicle tags alone.
