MISHIMOTO - Performance Air-to-Water Intercooler, Colour Matched, fits BMW F8X M3/M4 2015-2020
Tax included. Shipping calculated at checkout
You’ll earn 1492 Laps
For 1 item, including VAT but excluding delivery.
How it works
Sign in before ordering. Earn 1 Lap for every whole £1 of eligible product spend, including VAT.
Delivery, gift cards, sale-priced or discounted items and trade purchases do not earn Laps.
Purchase Laps become available 30 days after payment. Returns and refunds remove Laps earned on refunded items; pending Laps are cancelled.
This estimate follows your selected option and quantity. Checkout discounts can change eligibility. Bundle prices count once. Appstle records the final award after payment.
Sign in, open Spend Laps and choose an available reward. Redeem your Laps, copy your unique discount code and enter it at checkout using the same customer account.
Your tier makes your Laps go further: 1,000 Laps are worth £10 at Rookie, £12.50 at Contender, £20 at Pro or £25 at Champion. Choose £5 off £100, £10 off £200, £25 off £500 or £50 off £1,000 of eligible products.
Minimum spends include VAT and exclude delivery and ineligible products. Use one reward or discount code per order; it cannot be combined with any other product, order or shipping discount. Rewards apply only to eligible products and variants shown in your rewards profile. Returns and refunds remove the Laps earned on refunded items; pending Laps are cancelled. Spending Laps does not reduce your qualifying lifetime spend. Laps and standard reward codes do not expire.
Description

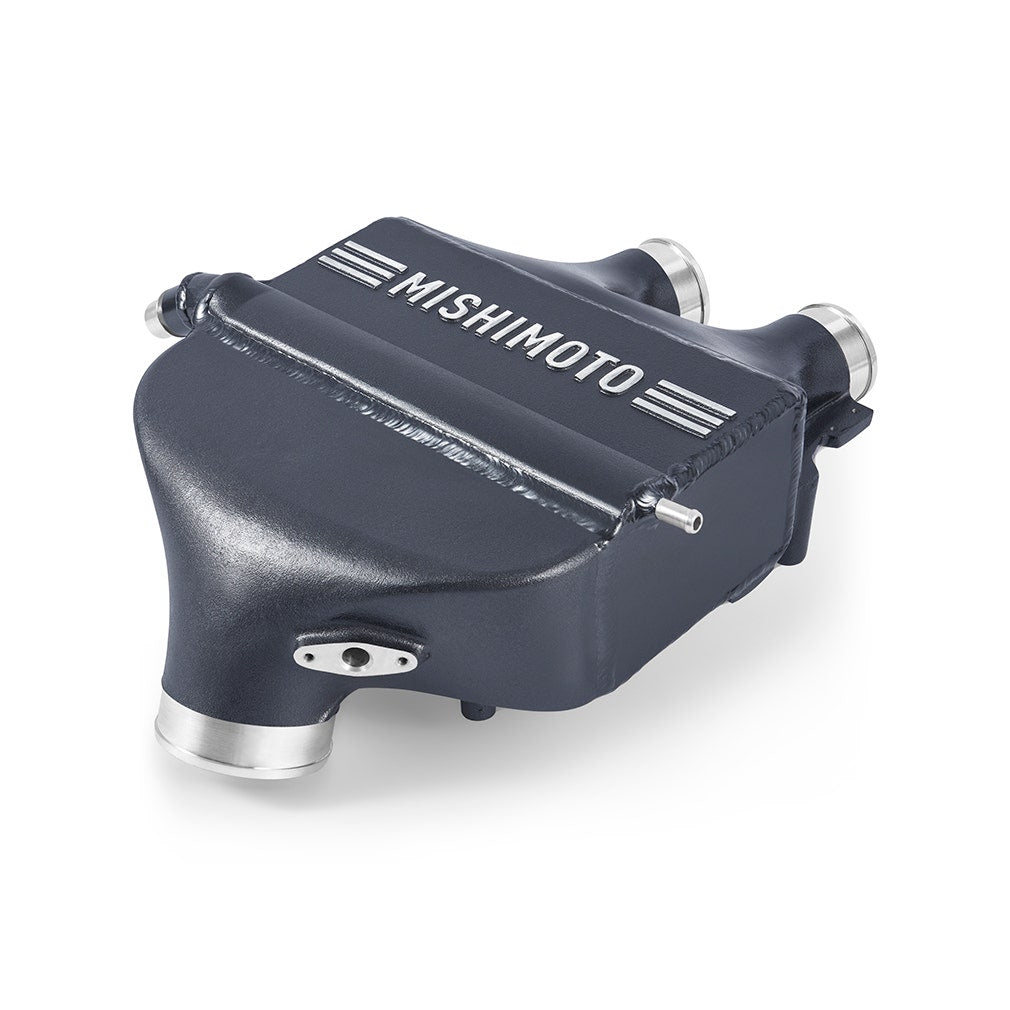

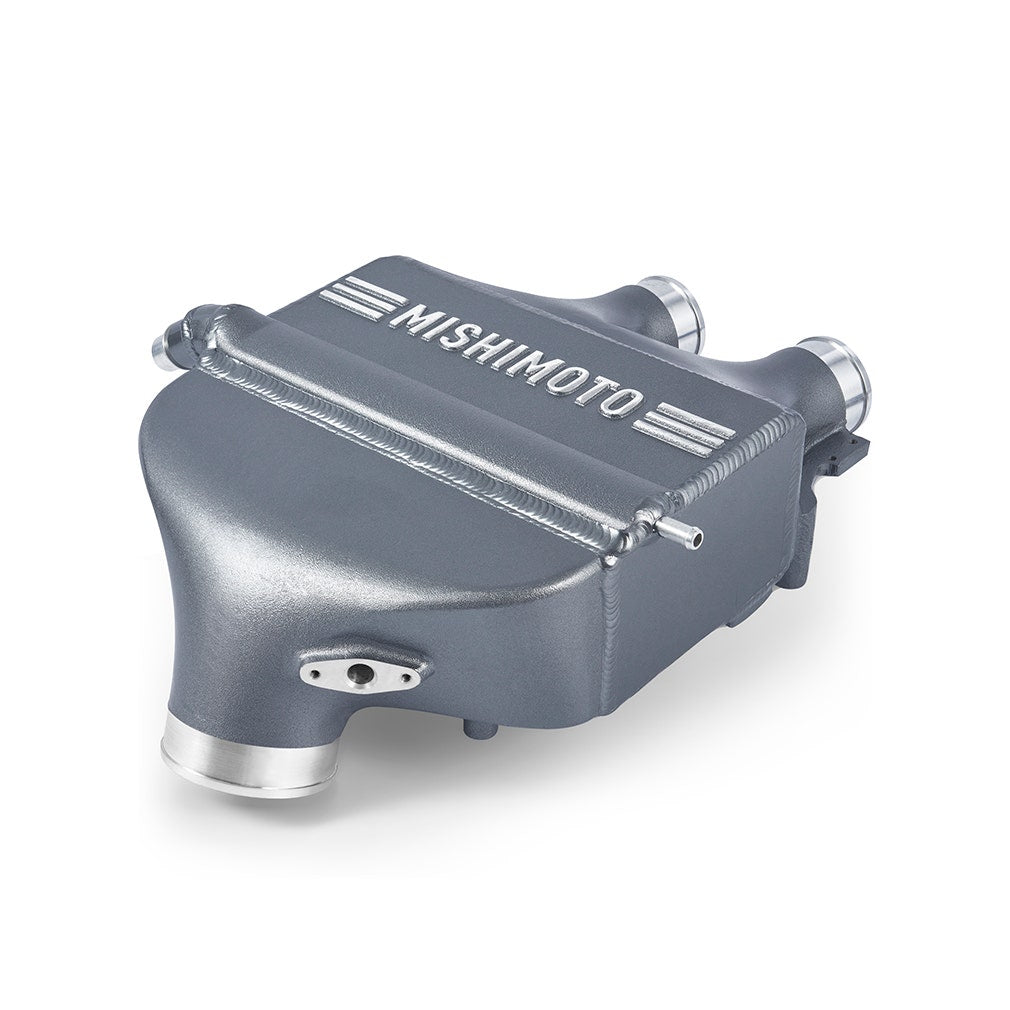

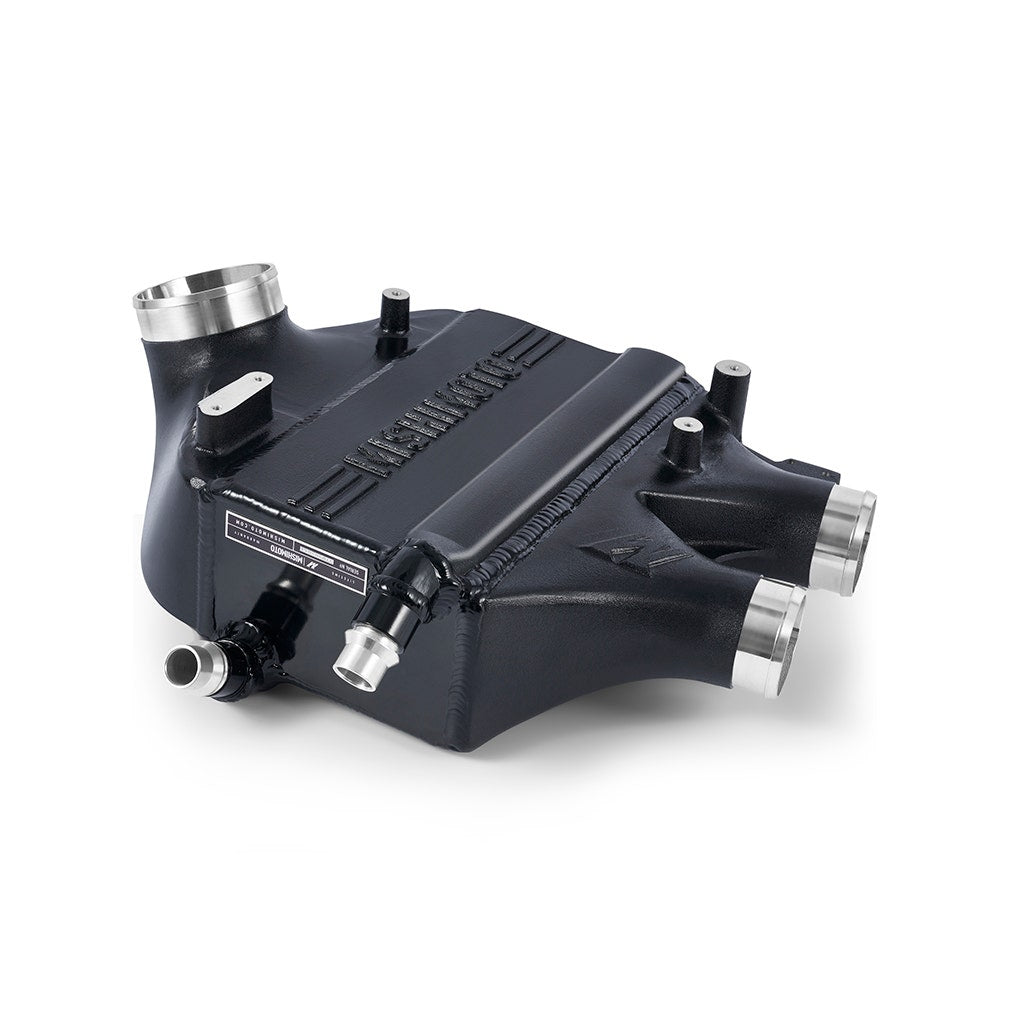

BMW's M lineup is the benchmark when it comes to performance luxury vehicles. The S55 that powers the 2015-2020 BMW F8X M3, M4 and M2 Competition is dripping with technology, which includes an air-to-water. Where BMW's intercooler design was enough to help bring this generation of M's to their peak, we here at Mishimoto found some weaknesses to address.
We started with the end tanks. The Mishimoto intercooler features full, cast aluminium end tanks, TIG-welded to our bar-and-plate core for maximum durability as you increase the boost in your Bimmer. Our end tanks also include internal air diverters on both the inlet and outlet to ensure an even flow of charged air through the core. When it comes to the core, bigger is better, and we were able to expand the size of our core in all dimensions, resulting in a 29% increase in core volume while abstaining from any modifications when it comes to the installation. Our new core also features a unique single-pass internal fin layout for the coolant passage for optimal heat transfer from the charged air to the coolant.
With our improvements combined, we saw the Mishimoto 2015-2020 BMW F8X M3 and M4 Performance Intercooler increase flow through the core by 16% and recorded a 12°F drop in intake air temperatures when tested with the Mishimoto Performance Heat Exchanger. We also recorded an average increase of 11 whp and 8 wtq during our testing with peak gains of up to 31 whp and 10 wtq.
To add even more style to your already impeccably designed F80, we've painted these charge pipes in your choice of 12 OEM colours. This high-quality, automotive-grade paint is durable enough for life under the hood and is matched to your exterior paint for an engine bay as sleek as the rest of your F80. Like all our products, the Mishimoto 2015-2020 BMW F8X M3, M4, and M2 Competition Performance Air-to-Water Intercooler is backed by the Mishimoto Lifetime Warranty for a lifetime of support for all your performance needs.
- Direct fit for the 2015-2020 BMW F8X M3, M4, and M2 Competition
- Color matched to your choice of 12 OEM colors or classic black
- 29% increase in core volume
- 16% increase in flow
- Average power gains of 11 whp and 8 wtq when combined with Mishimoto Heat Exchanger
- 12®F drop in intake air temperatures with Mishimoto Heat Exchanger
- Unique single-pass core design for improved cooling capacity
- Cast aluminium end tanks with incorporated diverters for maximum flow
- Bar-and-plate core for maximum cooling efficiency
- Compatible with stock and Mishimoto charge pipes
- US Patent No. D957,464 S
- Mishimoto Lifetime Warranty
| APPLICATIONS | 2015-2018 BMW M3 Sedan 2015-2020 BMW M4 Coupe 2015-2020 BMW M4 Convertible 2016 BMW M4 GTS Coupe 2019-2020 BMW M4 CS Coupe 2019-2020 BMW M2 Competition |
|---|---|
| ENGINE CODES | S55 |
| CHASSIS CODES | F80 F82 F83 F87 |
| CORE TYPE | Bar-and-Plate |
| CORE THICKNESS (IN) | 3.7 |
| INLET (IN) | 2 |
| OUTLET (IN) | 3 |
| INSTALLATION NOTES |
27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
|
