Description
ST XTA plus 3 Coilovers for BMW F20 / F21 / F22 / F23 / F30 / F32
ST XTA plus 3 coilovers combine ride-height adjustment with adjustable rebound, low-speed compression and high-speed compression damping with top mounts. Select the correct article for your vehicle, axle loads and factory suspension equipment using the application details below.
Article 182022080D
Product: ST XTA plus 3 coilover suspension, galvanised steel (damping adjustable with top mounts)
Damping adjustment: Rebound and compression adjustment
Material: Galvanised steel

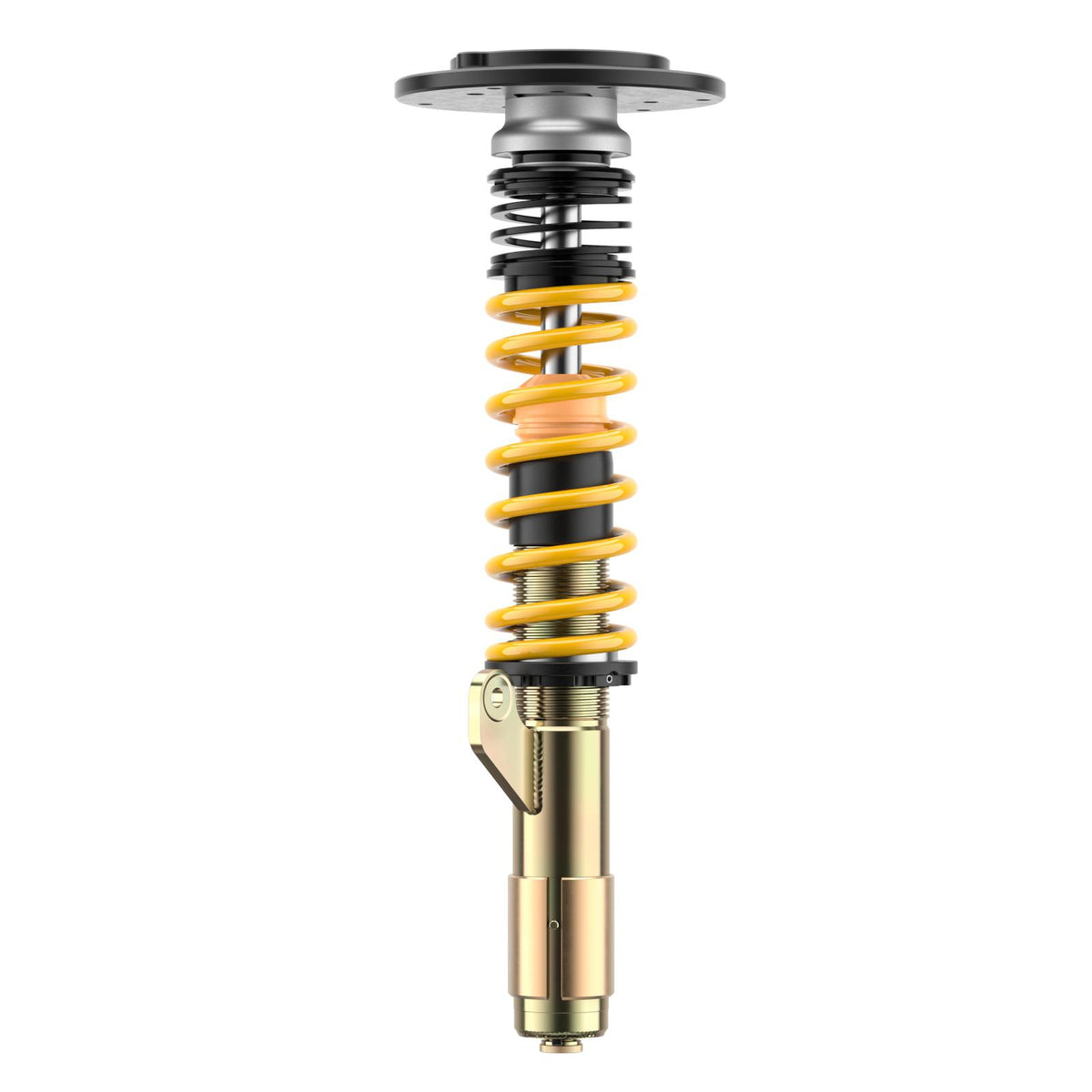

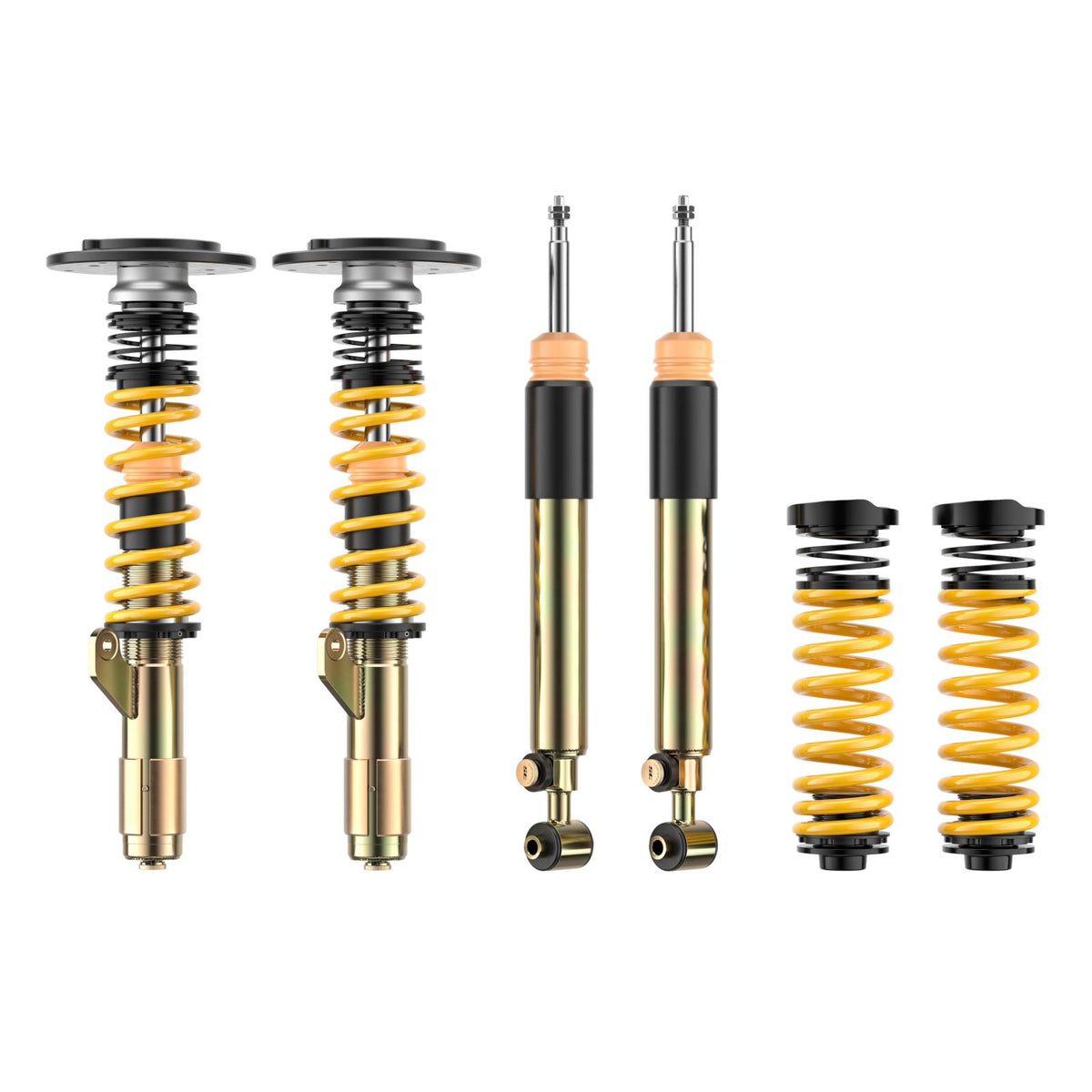

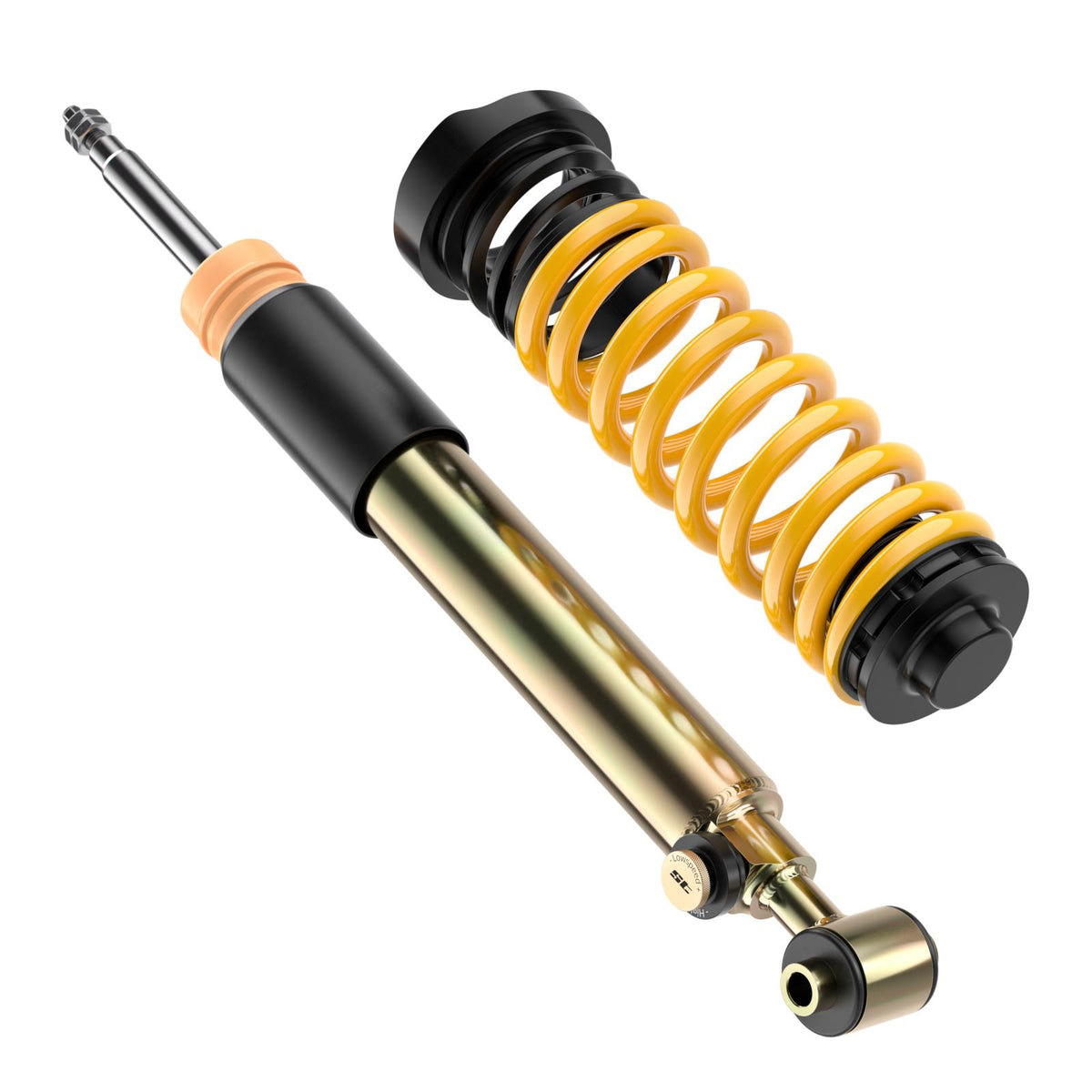

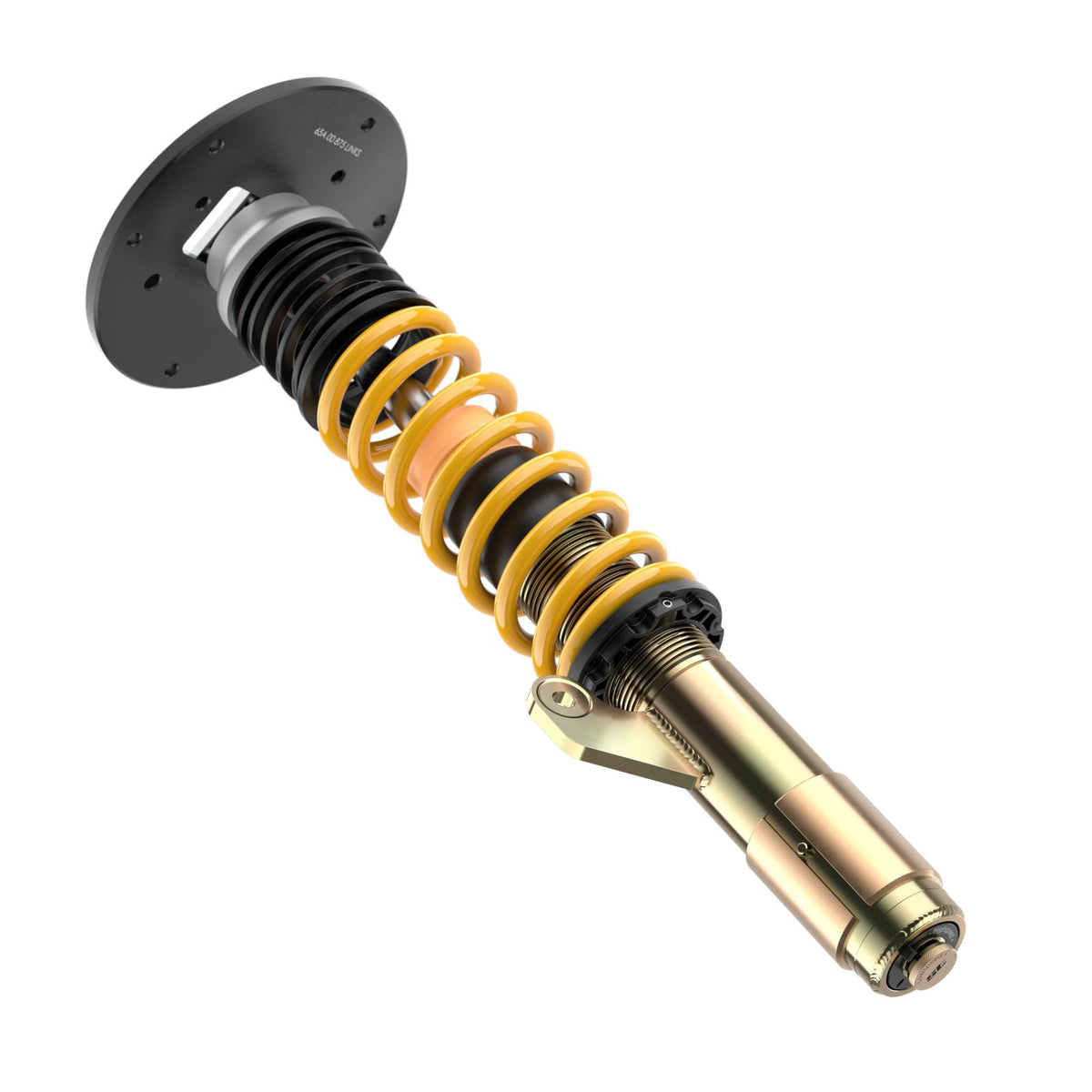

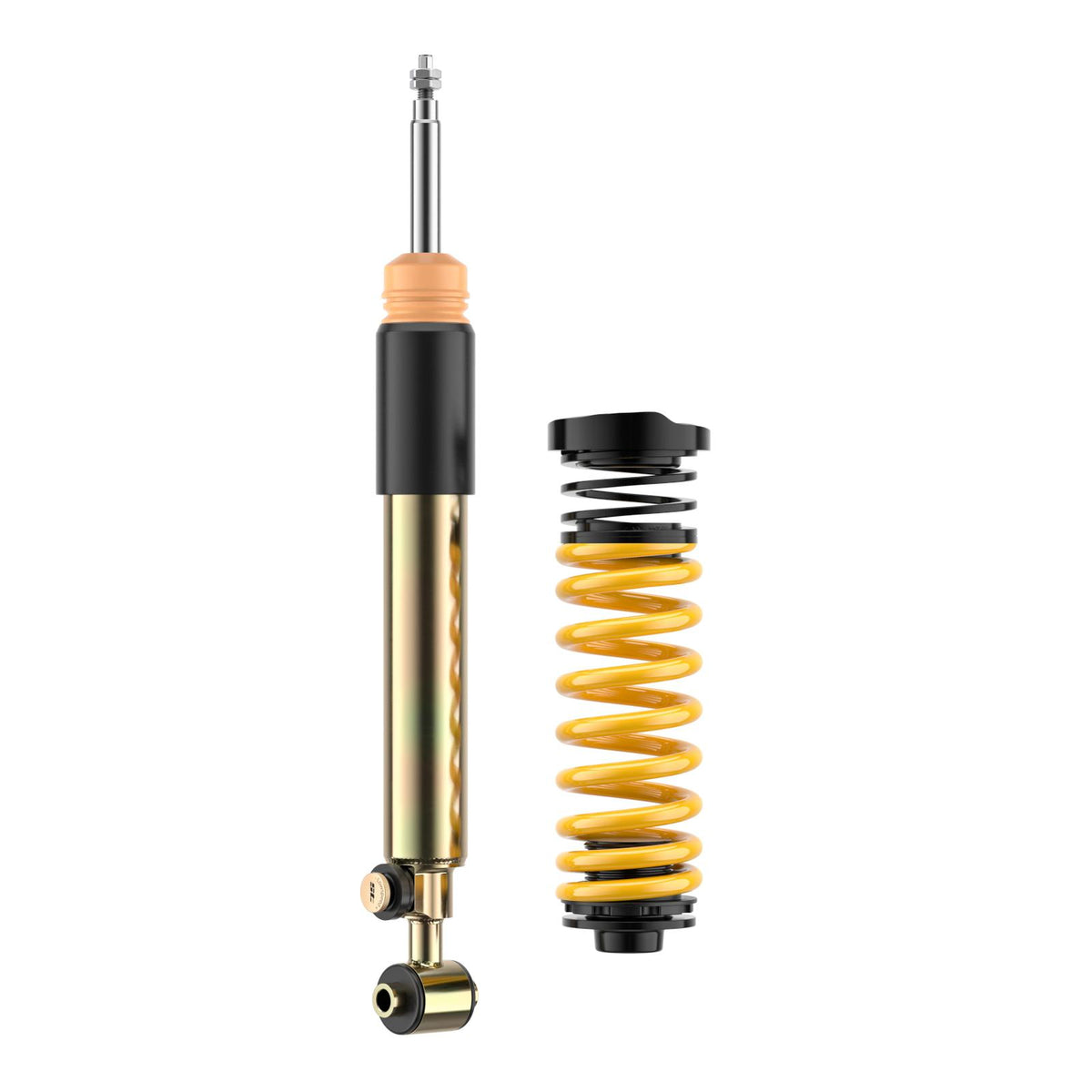

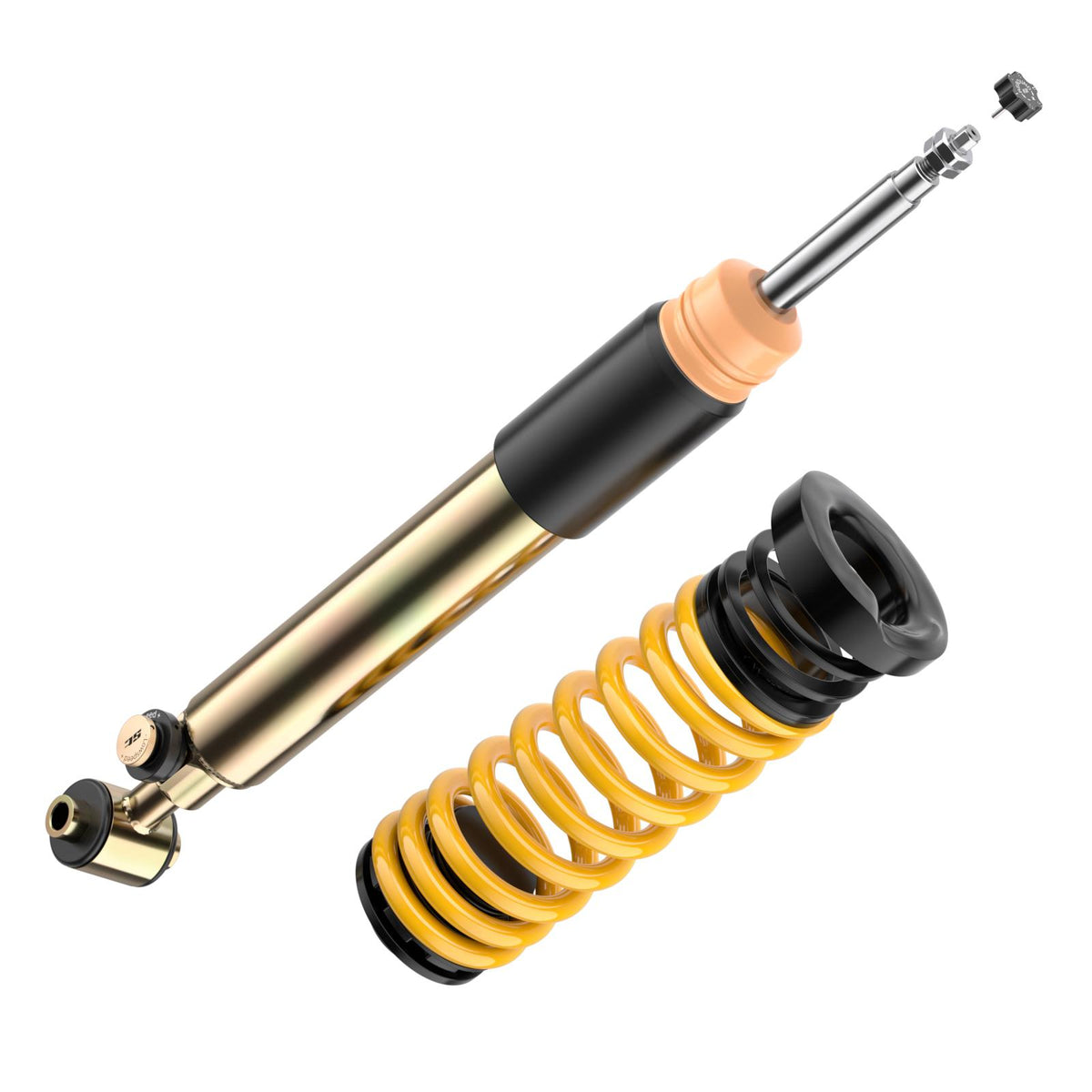

Included components: Set FA coilover struts incl. top mounts, RA springs with height adjustment + dampers
Vehicle applications and adjustment ranges
BMW 4 Coupe (F32, F82) 3C, M3, M3 GTS | 425 d, 435 i, 430 d, 418 d, 420 d, 420 i, 430 i, 440 i, 418 i, 425 i, 428 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 45-65 | 40-65 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 2 Coupe (F22, F87) 1C, M3 | 218 d, 225 d, 220 d, 228 i, 218 i, 220 i, 230 i, 225 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 30-55 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 3 (F30, F80) 3-HY, 3L, M3, M3 GTS | 320 d, 335 i, 318 i, 330 i, 340 i, 318 d, 320 i, 325 d, 330 d, 328 i, 328i, 316 d, 316 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 45-65 | 40-65 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 1 (F20) 1K4 | 125 i, 120 d, 116 i, 118 i, 116 d, 118 d, 120 i, M 135 i, 125 d, 114 d, M 140 i, 114 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 35-60 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 1 (F21) 1K2 | 125 i, 120 d, 116 i, 118 i, 120 i, M 135 i, 116 d, 118 d, 125 d, 114 d, M 140 i, 114 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 35-55 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 2 Convertible (F23) 1C | 220 i, 228 i, 220 d, 218 i, 218 d, 225 d, 230 i, 225 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 35-55 | 35-60 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 2 Convertible (F23) 1C | M 235 i, M 240 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 20-45 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
BMW 2 Coupe (F22, F87) 1C, M3 | M 235 i, M 240 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: no
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 15-35 | 15-40 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- Not for vehicles with electronic damper control
- In combination with orginal wheels and tyres, wheelspacers might be necessary
Manual downloads for 182022080D
Article 182022080E
Product: ST XTA plus 3 coilover suspension, galvanised steel (damping adjustable with top mounts)
Damping adjustment: Rebound and compression adjustment
Material: Galvanised steel
Included components: Set FA coilover struts incl. top mounts, RA springs with height adjustment + dampers
Vehicle applications and adjustment ranges
BMW 4 Coupe (F32, F82) 3C, M3, M3 GTS | 425 d, 435 i, 430 d, 418 d, 420 d, 420 i, 430 i, 440 i, 418 i, 425 i, 428 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 45-65 | 40-65 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 2 Coupe (F22, F87) 1C, M3 | 218 d, 225 d, 220 d, 228 i, 218 i, 220 i, 230 i, 225 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 30-55 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 3 (F30, F80) 3-HY, 3L, M3, M3 GTS | 320 d, 335 i, 318 i, 330 i, 340 i, 318 d, 320 i, 325 d, 330 d, 328 i, 328i, 316 d, 316 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 45-65 | 40-65 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 1 (F20) 1K4 | 118 d xDrive, 120 d xDrive
- Drivetrain: All-wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 20-40 | 15-40 |
| Permitted axle load (kg) | Up to 1040 | Up to 1120 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 1 (F21) 1K2 | 120 d xDrive, 118 d xDrive
- Drivetrain: All-wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 20-40 | 15-40 |
| Permitted axle load (kg) | Up to 1040 | Up to 1120 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 1 (F20) 1K4 | 125 i, 120 d, 116 i, 118 i, 116 d, 118 d, 120 i, M 135 i, 125 d, 114 d, M 140 i, 114 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 35-60 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 1 (F21) 1K2 | 125 i, 120 d, 116 i, 118 i, 120 i, M 135 i, 116 d, 118 d, 125 d, 114 d, M 140 i, 114 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 35-60 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 2 Convertible (F23) 1C | 220 i, 228 i, 220 d, 218 i, 218 d, 225 d, 230 i, 225 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 35-55 | 35-60 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 2 Convertible (F23) 1C | M 235 i, M 240 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 30-50 | 20-45 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 1 (F21) 1K2 | M 135 i xDrive, M 140 i xDrive
- Drivetrain: All-wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 20-40 | 15-40 |
| Permitted axle load (kg) | 1001-1040 | Up to 1120 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 1 (F20) 1K4 | M 135 i xDrive, M 140 i xDrive
- Drivetrain: All-wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 20-40 | 15-40 |
| Permitted axle load (kg) | 1001-1040 | Up to 1120 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
BMW 2 Coupe (F22, F87) 1C, M3 | M 235 i, M 240 i
- Drivetrain: Rear-Wheel Drive
- Factory electronic damper control: yes
| Specification | Front | Rear |
|---|---|---|
| Lowering (mm) | 15-35 | 15-40 |
| Permitted axle load (kg) | Up to 1090 | Up to 1230 |
Installation requirements
- In combination with orginal wheels and tyres, wheelspacers might be necessary
- At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510301
Manual downloads for 182022080E
Before ordering and fitting
Match the article number to the exact model, drivetrain, factory damper equipment and permitted axle loads. Lowering figures are application-specific and must be read together with the installation requirements. Professional installation, clearance checks and wheel alignment are required.
More information
Get Booked in for fitting here
Warranty, Shipping and Returns
Products are supplied with the applicable manufacturer warranty. We offer UK and worldwide shipping. Please refer to the live availability information and our shipping and returns policies before ordering. Contact us if you need to confirm compatibility, intended use or any product-specific conditions.
Finance Options
Available payment options and current terms are shown at checkout. Instalment options depend on the provider and eligibility. Please review the terms displayed before confirming your payment.
Why buy from us?
Why buy from us?
Secure payments
Secure payments
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
- Brand
- ST Suspension
- Product type
- Coilovers
- SKU:
- 182022080D
- Barcode
- 182022080D
- Does the vehicle have EDC (Electronic Damper Control)?
- No
- Vehicle make
- BMW
- Vehicle model
- M135i, M140i, M235i, M240i, 335i, 340i, 435i, and 440i
- Vehicle variant
- F20, F21, F22, F23, F30, and F32
You’ll earn 2219 Laps
For 1 item, including VAT but excluding delivery.
How it works
Sign in before ordering. Earn 1 Lap for every whole £1 of eligible product spend, including VAT.
Delivery, gift cards, sale-priced or discounted items and trade purchases do not earn Laps.
Purchase Laps become available 30 days after payment. Returns and refunds remove Laps earned on refunded items; pending Laps are cancelled.
This estimate follows your selected option and quantity. Checkout discounts can change eligibility. Bundle prices count once. Appstle records the final award after payment.
Sign in, open Spend Laps and choose an available reward. Redeem your Laps, copy your unique discount code and enter it at checkout using the same customer account.
Your tier makes your Laps go further: 1,000 Laps are worth £10 at Rookie, £12.50 at Contender, £20 at Pro or £25 at Champion. Choose £5 off £100, £10 off £200, £25 off £500 or £50 off £1,000 of eligible products.
Minimum spends include VAT and exclude delivery and ineligible products. Use one reward or discount code per order; it cannot be combined with any other product, order or shipping discount. Rewards apply only to eligible products and variants shown in your rewards profile. Returns and refunds remove the Laps earned on refunded items; pending Laps are cancelled. Spending Laps does not reduce your qualifying lifetime spend. Laps and standard reward codes do not expire.
Need help?
Product questions answered
Helpful answers before you order. Need more detail? Our team can help.
How do I confirm this part fits my vehicle?
Check the model, year, engine, chassis and any exclusions in the product description. Select the required option before adding to your basket. The vehicle selector helps narrow your search; contact us if your car has different factory options or existing modifications.
Which suspension option should I choose?
Consider your road and track use, desired ride height and comfort preference. Check the listed axle loads, electronic-damper requirements and included parts where applicable. Contact us with your current setup before choosing an option.
What should I check before booking installation?
Ask your installer to check the supplied components and fitting instructions, any required mounting hardware and whether alignment or calibration is needed for your chosen parts. Confirm the delivery estimate before booking.
When will my order arrive?
Select your required option and check the live availability message above. Dispatch is when your order leaves us; delivery takes additional time and depends on the service and destination. If no verified lead time is shown, or you need the item for a fitting appointment or event, contact Nineteen72 Performance before ordering.
What is included in the price?
Check the product description, selected option and stated quantity before ordering. Images may show optional equipment or an example installation. If you need a matching pair, a complete kit or additional hardware, ask us to confirm exactly what is included.
How do I get help before ordering?
Contact Nineteen72 Performance with a link to this product and your question. For vehicle-specific parts, include your model, year, engine and any modifications that may affect compatibility.
No FAQs found. Try a different search.
Recommended with ST Suspension
Explore complementary upgrades from these brands. Check each product’s fitment and suitability for your vehicle before ordering.
